CAR HAULERS
features
| Feature | Car Haulers | Car Haulers 32’ and 34’ |
|---|---|---|
| Chassis Main Rails | 6"x2" Steel Tubing | 8"x2" Steel Tubing |
| Chassis Cross Members | 6"x2" C-Purling 16" OC | 8"x2" C-Purling 16" OC |
| D-Rings | 4 | 6 |
| Type Tongue | A-Frame Tripple | A-Frame Tripple |

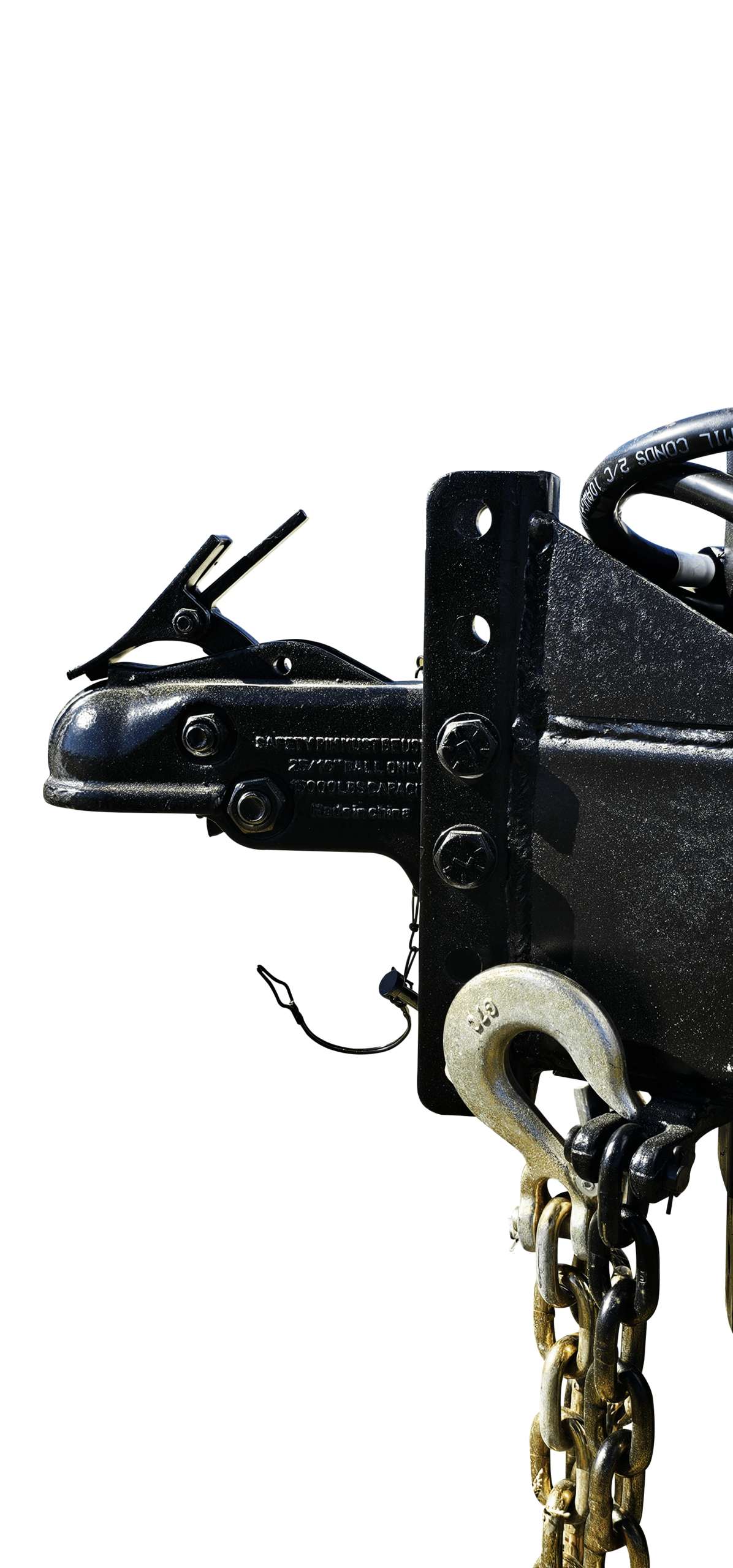

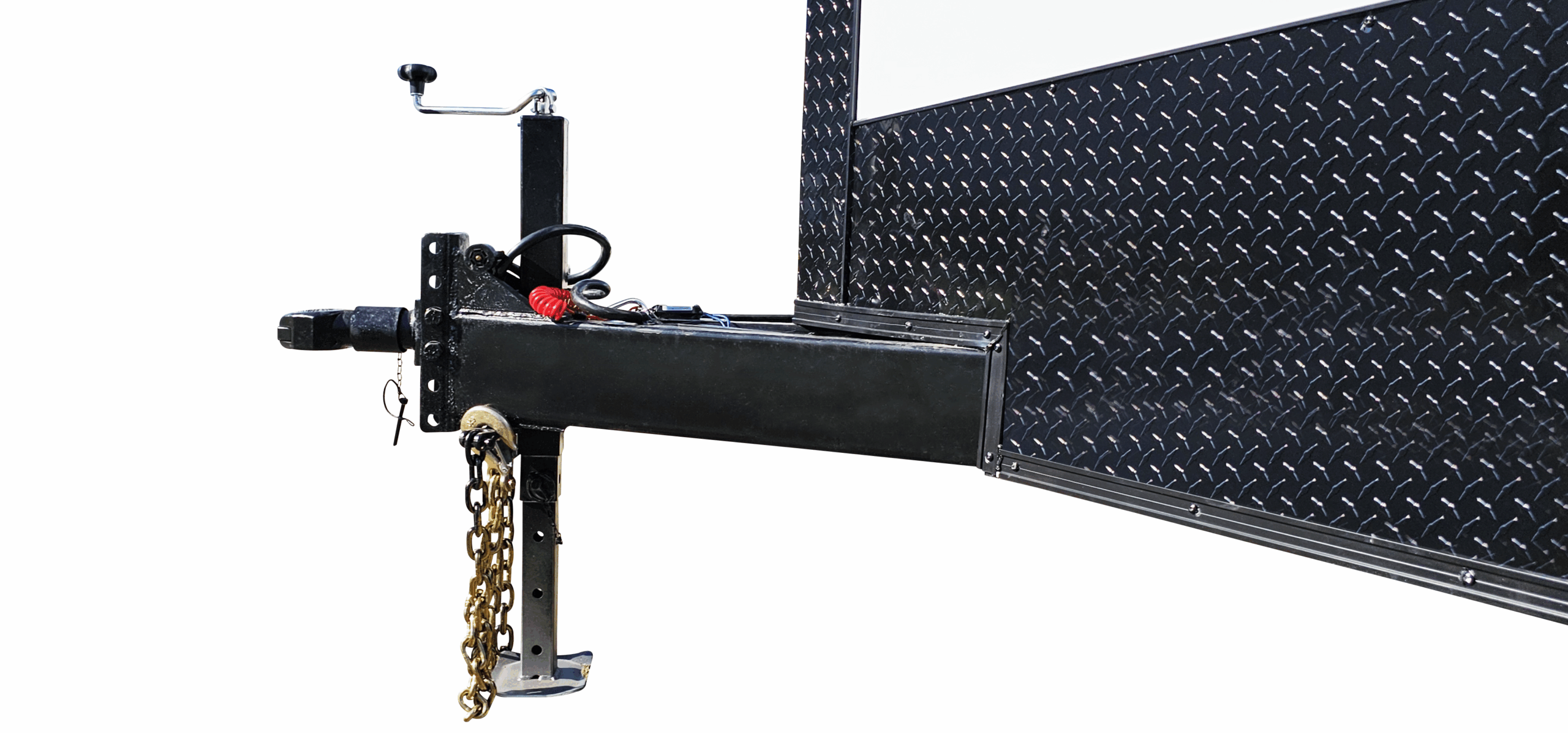

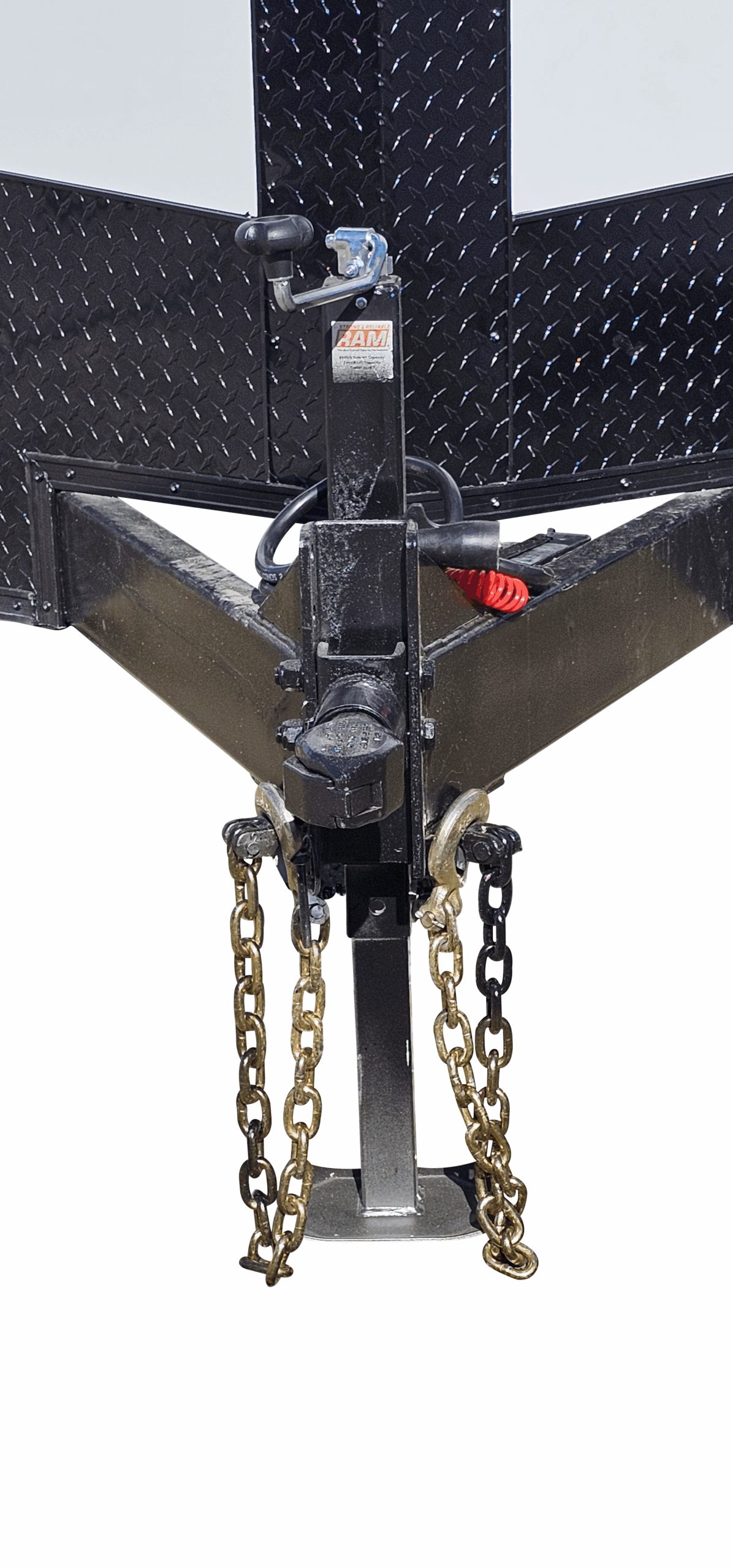

| Coupler | 2-5/16" Adjustable Bulldog | 2-5/16" Adjustable Bulldog |
| Adjustable Coupler Bracket | 6 Positions | 6 Positions |
| Jack | 7K LBS | 10K LBS |
| Fabricated Corner Posts | Yes | Yes |
| Fabricated Front and Top Rear Header | Yes | Yes |
| Chassis Dust Cap | Yes | Yes |
| Beaver Tail | Yes | Yes |
| Axles | 5.2K with Breaks | Tripple 5.2K with Breaks |
| Roof Cross Members | 1"x1" Square Tubing | 1"x1" Square Tubing |
| Roof Cross Members Spacing | 16" OC | 16" OC |
| Wall Studs | 1"x1" Square Tubing | 1"x1-1/2" Square Tubing |
| Wall Studs Spacing | 16" OC | 16" OC |

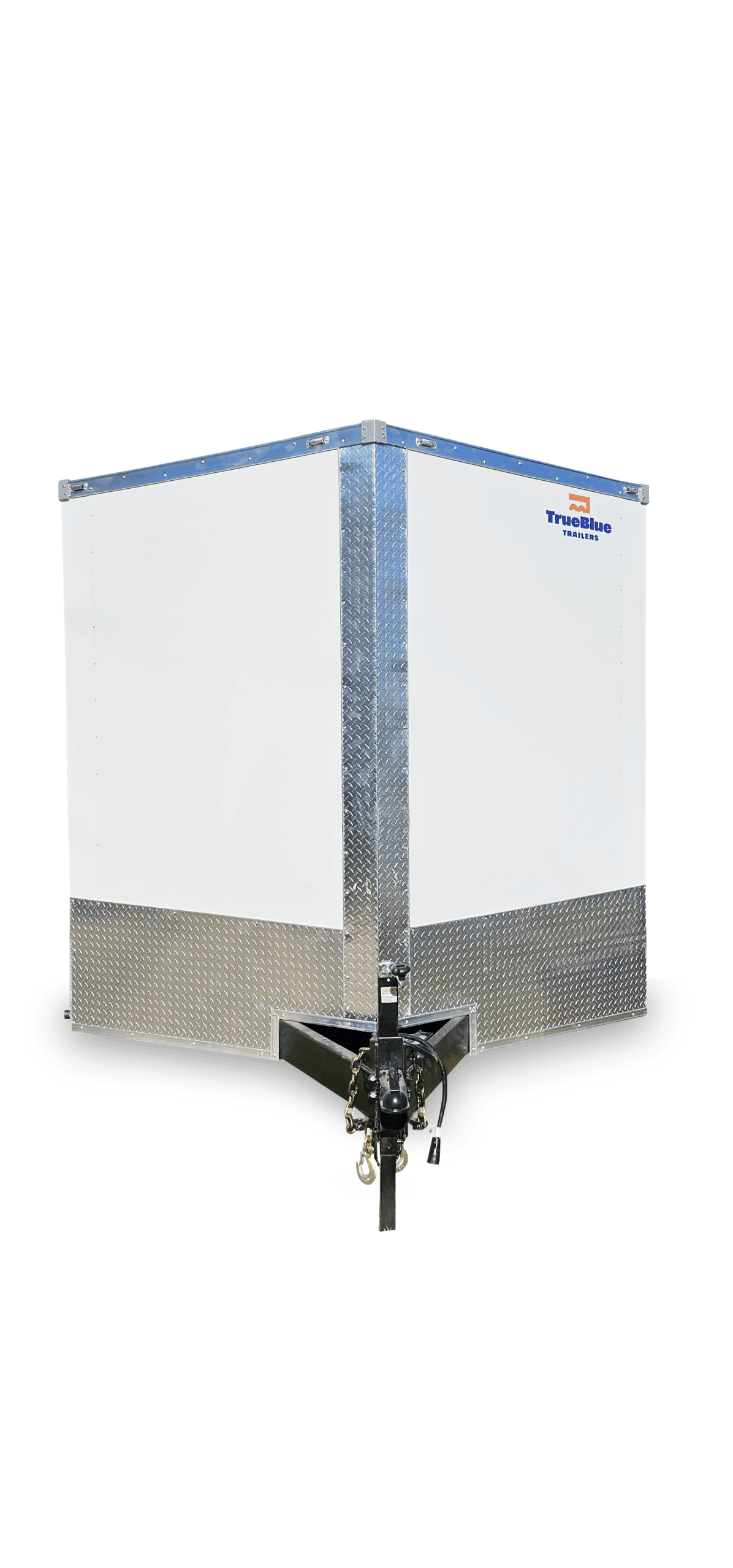

| Front Profile | V-Nose | V-Nose |
| Spoiler | Yes | Yes |
| Tire/Wheel | ST225/75R15 - 10 Ply | ST225/75R15 - 10 Ply |

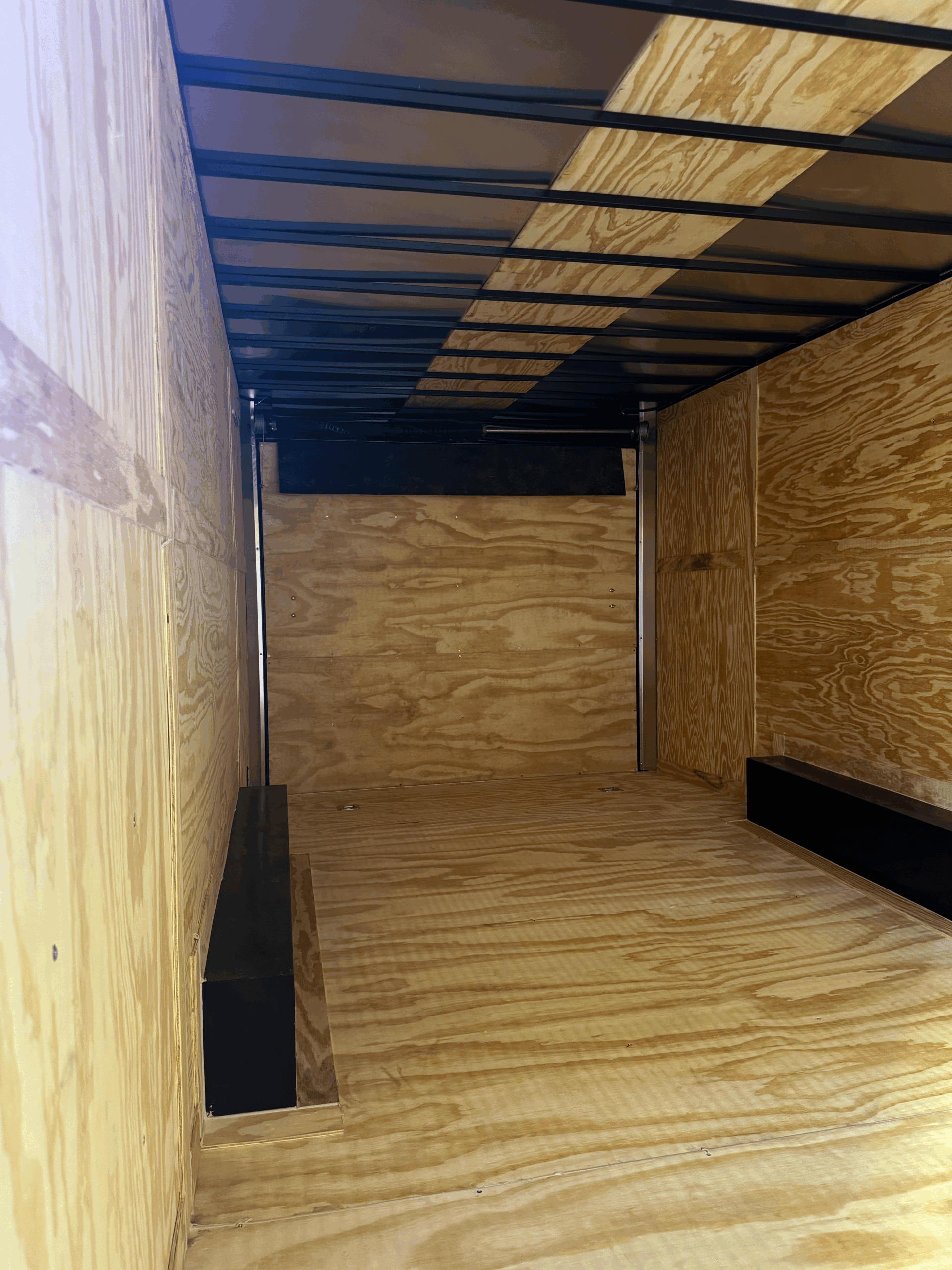

| Interior Walls | 3/8" Plywood | 3/8" Plywood |
| Interior Floor | 3/4" Plywood | 3/4" Plywood |
| Exterior Wall | 0.080" Polycor | 0.080" Polycor |
| Exterior Fastening | Semi-Screwless | Semi-Screwless |
| Air Vents | Yes | Yes |
| Stone Guard | 24" | 24" |
| Connection | 7-Way Cable | 7-Way Cable |
| Breakaway Switch with Battery | Yes | Yes |
| Interior Lights | (2) LED Light Bar with Integrated Switch | (2) LED Light Bar with Integrated Switch |
| Exterior Lights | LED | LED |
| Roof | Single Piece Aluminum | Single Piece Aluminum |

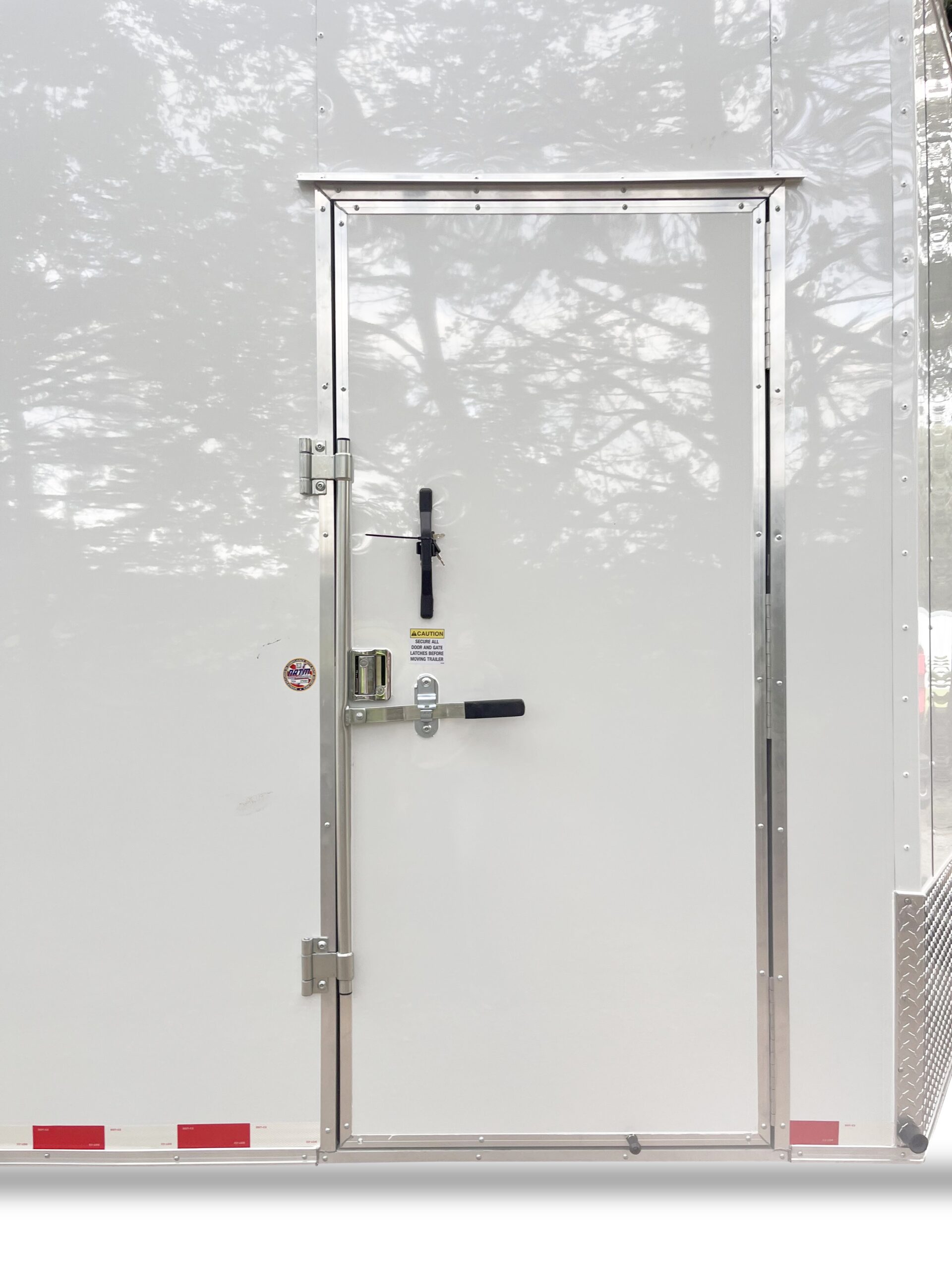

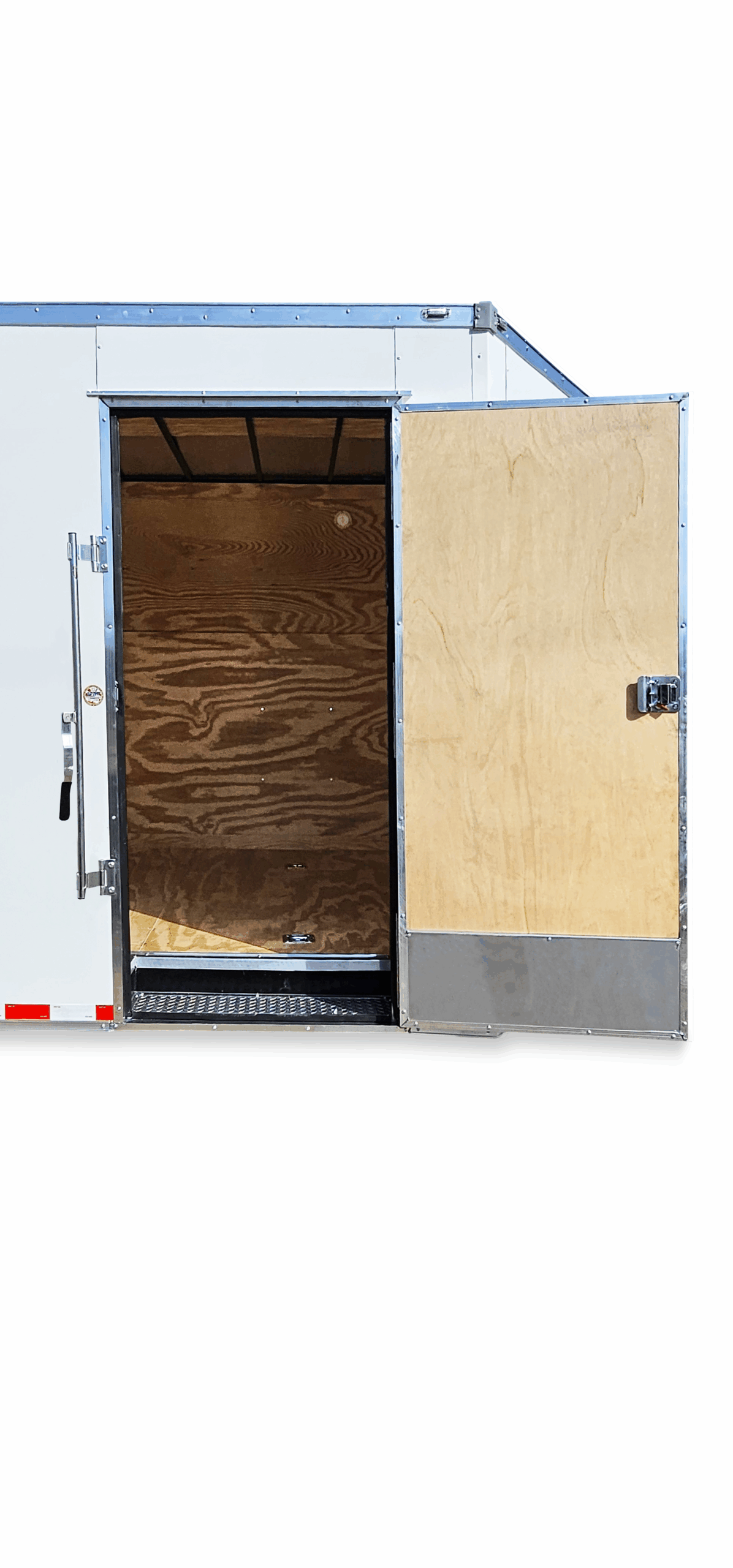

| Side Door | 36" x 78" | 36" x 78" |
| RV Latch / Bar Lock Combo on Side Door | Yes | Yes |
| Loading Lights | Large LED Loading Lights with Independent Switch | Large LED Loading Lights with Independent Switch |

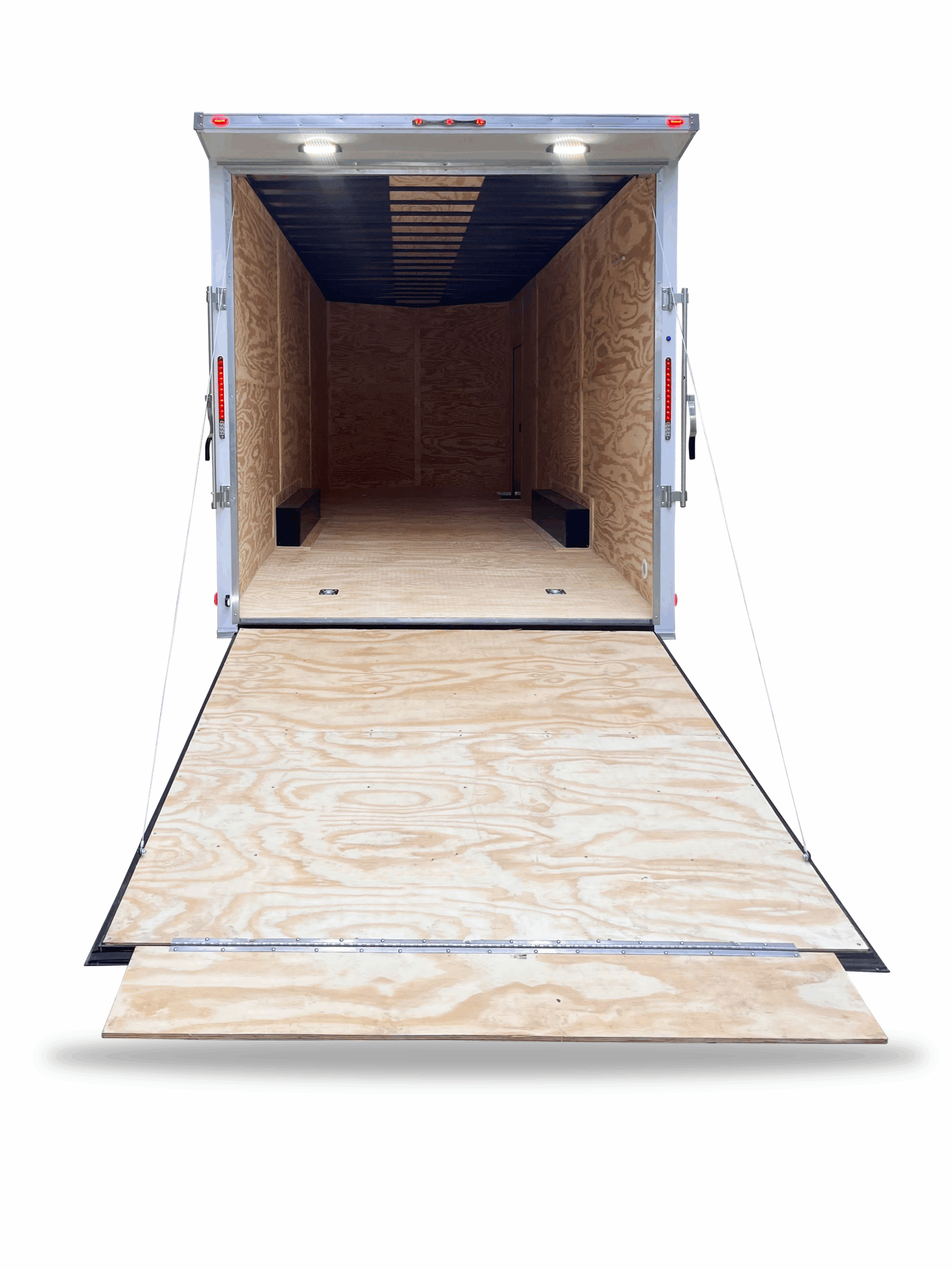

| Rear | Ramp or Barn Doors | Ramp or Barn Doors |
DIMENSIONS
| Feature | 8.5X14 TA 5.2K | 8.5X16 TA 5.2K | 8.5X20 TA 5.2K | 8.5X22 TA 5.2K | 8.5X24 TA 5.2K | 8.5X26 TA 5.2K | 8.5X28 TA 7K | 8.5X30 TA 5.2K | 8.5X32 TA 5.2K | 8.5X34 TA 5.2K |
|---|---|---|---|---|---|---|---|---|---|---|
| Exterior Width | 99" | 99" | 99" | 99" | 99" | 99" | 99" | 99" | 99" | 99" |
| Interior Width | 97" | 97" | 97" | 97" | 97" | 97" | 97" | 97" | 97" | 97" |
| Exterior Height | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" | 97-1/4" |
| Interior Height | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" | 90-1/4" |
| Ramp Opening Width | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" |
| Ramp Opening Width Between Cables | 88" | 88" | 88" | 88" | 88" | 88" | 88" | 88" | 88" | 88" |
| Ramp Opening Height | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" | 80-1/4" |
| Inside Space Between Fender Boxes | 81" | 81" | 81" | 81" | 81" | 81" | 81" | 81" | 81" | 81" |

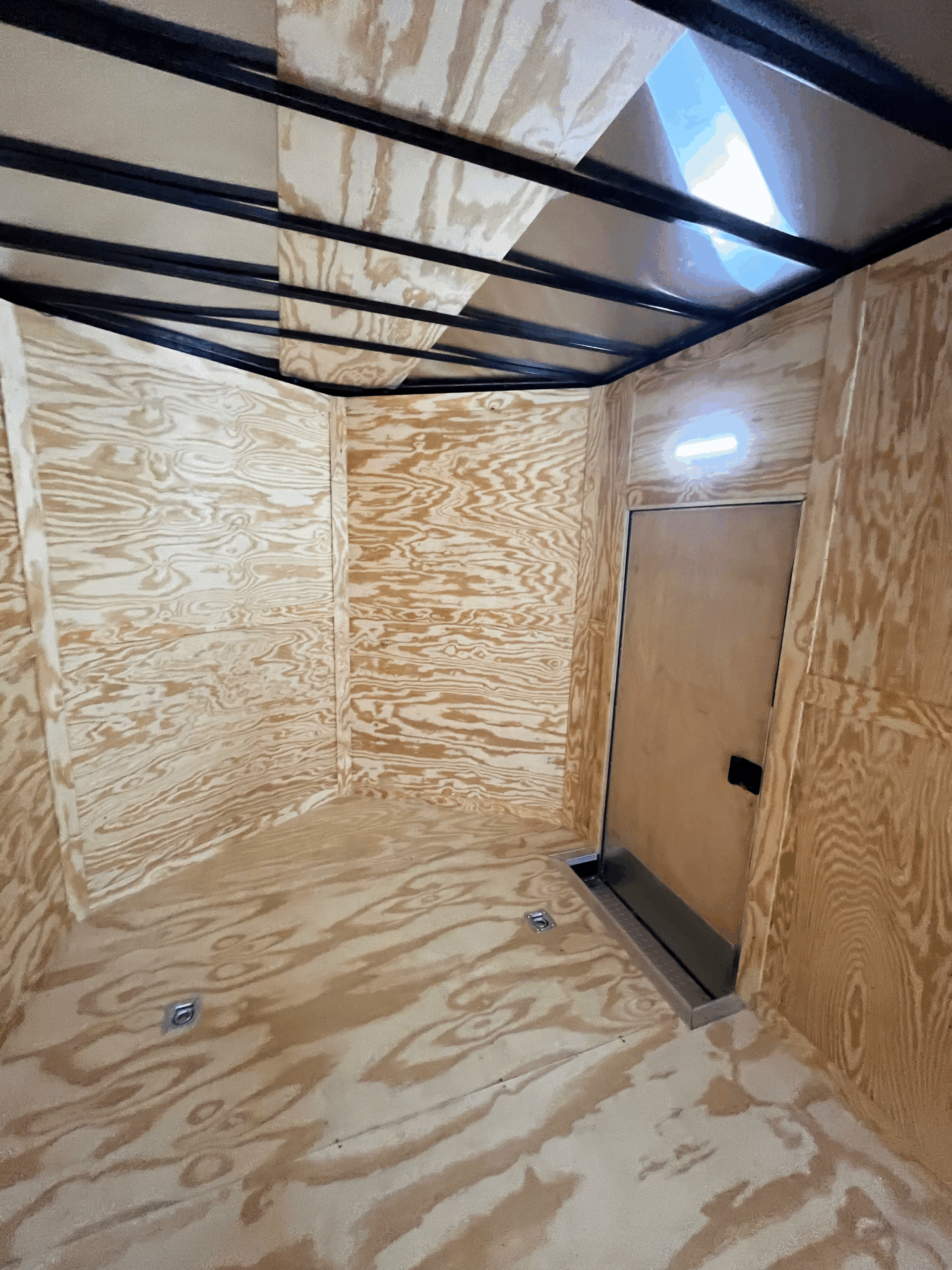

| V-Nose Interior Size | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" | 31-1/2" |
| Tongue - Distance from Chassis to Coupler Bracket | 53" | 53" | 53" | 53" | 53" | 53" | 53" | 53" | 53" | 53" |
| Distance from End of V-Nose to Jack | 14" | 14" | 14" | 14" | 14" | 14" | 14" | 14" | 46" | 46" |
| Distance from End of V-Nose to Beginning of Coupler Bracket | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 64-1/2" | 64-1/2" |
| Overall Length to End of Coupler | 232 | 256 | 280 | 304 | 328 | 352 | 376 | 400 | 445 | 469 |
